MATECO® 200 Thermal Insulation Mattress: Excellence for Singular Points

Mateco® 200

Technical Data Sheet

  • This insulation mattress in Coated Glass Fabric et Glass Wool is waterproof and economical.
  • It withstands continuous temperatures up to 200°C and has been classified M0 for its reaction to fire.
  • It’s flexible, removable and customizable with your logo and contact details.
Contact Us

Technical Specifications
1.
2.
3.

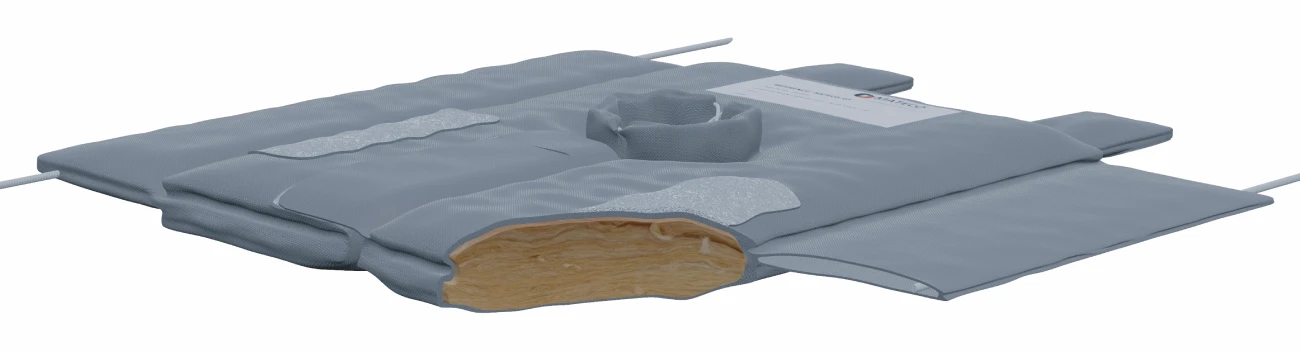

1. – Glasswool
Technical Features Unit Values Standards
Fire rate – Euroclass A1 (non-combustible) EN 13501-1
Max. Operating Temperature °C 300 (Under 250 Pa of pressure) NF EN 14706 NF EN 14303
Thermal
conductivity		 °C   50 70 100 150 200 300 NF EN 12667 NF EN ISO 13787 NF EN 14303
Λ (W/m.K) 0.038 0.04 0.047 0.058 0.07 0.102
Density kg/m³ 35 NF EN 1602
Thickness mm 63 NF EN 14303

3. – Closing system
Side flap + HDPE Drawstring

2. One-Side Coated Glass Fabric
Technical feature Unit Values Standards of reference
Thickness mm 0.45 DIN ISO 4303/E
Color – Grey –
Weight g/m² 430 DIN EN 12127
Temperature Resistance °C 200 –

Range of Products
Range of Products
Reference Indica+ve DN (Diameter Nomina) Dimensions (mm) Packaging (items/box)
2-WAYS VALVES
MATECO/200/00 – 120 x 220 300
MATECO/200/01 RU-25 180 x 350 200
MATECO/200/02 DN 15/20 220 x 490 100
MATECO/200/03 DN 25/40 220 x 720 80
MATECO/200/04 DN 50/65 300 x 890 40
MATECO/200/05 DN 80/100 390 x 1100 30
MATECO/200/06 DN 125 530 x 1230 20
MATECO/200/07 DN 150 540 x 1440 15
MATECO/200/08 DN 200/250 540 x 1690 10
MATECO/200/09 DN 300 740 x 1750 10
MATECO/200/10 DN 350 940 x 1890 8
MATECO/200/11 DN 400 990 x 2040 8
Reference Indica+ve DN (Diameter Nomina) Dimensions (mm) Packaging (items/box)

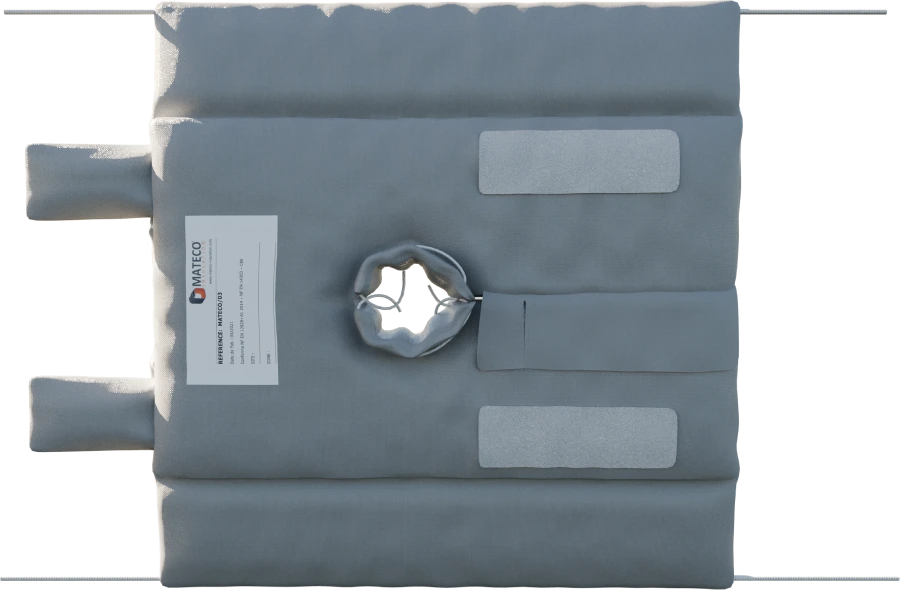

3-WAYS VALVES
MATECO/200/02-3 DN 15/20 220 x 490 80
MATECO/200/03-3 DN 25/40 260 x 720 55
MATECO/200/04-3 DN 50/65 390 x 890 35
MATECO/200/05-3 DN 80/100 430 x 1090 20
MATECO/200/06-3 DN 125 530 x 1220 15
MATECO/200/07-3 DN 150 530 x 150 10
MATECO/200/08-3 DN 200/250 530 x 1750 10
Reference Dimensions (mm) Packaging (items/box)
HEAT EXCHANGERS
MATECO/200/01-EXC 380 x 610 20
MATECO/200/02-EXC 830 x 1370 6
MATECO/200/03-EXC 1130 x 1410 4
Reference Indica+ve DN (Diameter Nomina) Dimensions (mm) Packaging (items/box)
FLANGES
MATECO/200/02-F DN 15/20 220 x 530 130
MATECO/200/03-F DN 25/40 200 x 720 80
MATECO/200/04-F DN 50/65 200 x 900 70
MATECO/200/05-F DN 80/100 200 x 1100 55
MATECO/200/06-F DN 125 200 x 1250 50
MATECO/200/07-F DN 150 200 x 1550 40
MATECO/200/08-F DN 200/250 2000 x 1750 35

With our MATECO® 200 insulation mattress, you can improve the performance of your systems and guarantee the safety of your personnel during maintenance operations.

The MATECO® 200 is a removable thermal insulation mattress specifically designed for the protection and insulation of singular points (valves, flanges, heat exchangers) in industrial environments and heating networks. Manufactured in Europe, this waterproof and economical device features a core made of glass wool (density 35 kg/m³) wrapped in a coated glass fabric. It guarantees high-performance insulation for installations subjected to continuous temperatures up to 200°C (and up to 300°C under 250 Pa of pressure). Its custom-fit design, including a drawstring closing system, offers an immediate response to the decarbonization and energy efficiency requirements of modern boiler rooms.

Technical Specifications of the 200°C Insulation Mattress

The formidable effectiveness of the MATECO® 200 relies on advanced engineering aimed at eliminating thermal bridges on complex valve assemblies. The multi-layered structure of this mattress ensures optimal thermal insulation while complying with the strictest industrial safety standards. The insulating core, with a thickness of 63 mm, displays an exceptional thermal conductivity of 0.07 W/m.K at 200°C, effectively blocking heat fluxes.

Major technical specifications include:

  • Base material: One-side coated glass fabric (thickness 0.45 mm, weight 430 g/m²).
  • Internal insulation: High-density glass wool (35 kg/m³) ensuring thermal retention.
  • Fire safety: Reaction to fire classification Euroclass A1 (M0 – non-combustible).
  • Closing system: Side flap coupled with an HDPE drawstring, for a tight and quick fit.
  • Customization: Possibility to integrate the company logo and maintenance contact details directly on the outer casing.

Industrial Benefits: Energy Efficiency and Optimized Maintenance

Integrating MATECO® 200 insulation covers into your industrial installations and central heating systems transforms energy-intensive components into drivers of profitability. Uninsulated singular points represent the primary source of heat loss in a network. By installing our solutions, building operators and facility managers observe an immediate drop in their energy consumption.

The operational advantages translate into:

  • Drastic reduction of CO2 emissions: Optimizing thermal containment decreases the workload of boilers, aligning your facilities with current environmental targets.
  • Total prevention of heat loss: The hermetic seal of the mattress eliminates thermal leaks on complex geometries.
  • Accelerated maintenance operations: Unlike traditional sheet metal cladding, this removable insulation mattress can be taken off and repositioned in seconds thanks to its exceptional flexibility, ensuring safe access to valves for operators.
  • Proven durability: The technical textiles used resist moisture, friction, and demanding boiler room environments.

Product Range: Valves, Flanges, and Heat Exchangers

The versatility of the MATECO® 200 allows it to adapt to all standard or specific valve components. We have standardized our production to cover a wide range of Nominal Diameters (DN), ensuring perfect compatibility with your fluid network components. Each piece is carefully sized to ensure complete envelopment of the metal part without interfering with the operating mechanisms.

Thermal Insulation for 2-Way and 3-Way Valves

Shut-off or control valves are critical nodes. Our range covers 2-way valves (from DN 15/20 to DN 400) and 3-way valves (from DN 15/20 to DN 200/250). Whether for an RU-25 reference valve or massive industrial diameters, the mattress molds to the shape of the valve body while leaving actuators or handwheels perfectly accessible. This design prevents condensation and overheating of the ambient environment, thus securing personnel against accidental burns.

Insulation Mattresses for Flanges and Heat Exchangers

Flanged connections and heat exchangers have complex contact surfaces requiring flexible insulating coverage. Our flange covers are available from DN 15 to DN 250, offering a continuous envelope over the bolting. Regarding exchangers, we offer models covering dimensions ranging from 380 x 610 mm up to 1130 x 1410 mm. This specific thermal cladding makes it possible to maintain heat transfer fluids at an ideal continuous temperature, maximizing the efficiency of the exchanger while protecting the seals from external thermal shocks.

It is a flexible and removable insulation cover designed to fit the complex shapes of valves, flanges, or heat exchangers. It prevents heat loss in areas that are impossible to insulate with traditional rigid cladding.
The MATECO 200 mattress withstands a continuous operating temperature of 200°C. Under specific pressure conditions (250 Pa), it can resist temperature peaks up to 300°C.
Yes, it is 100% removable and reusable. Thanks to its drawstring closing system and flexibility, it can be easily taken off during maintenance operations and repositioned without losing its insulating properties.
It features an internal core of glass wool with a density of 35 kg/m³ (63 mm thickness) offering excellent thermal performance, covered by an outer layer of waterproof and highly resistant coated glass fabric.
This insulation mattress has a reaction to fire classification of Euroclass A1, equivalent to an M0 rating. It is completely non-combustible, ensuring maximum safety in industrial facilities and boiler rooms.
